Kit Home 9

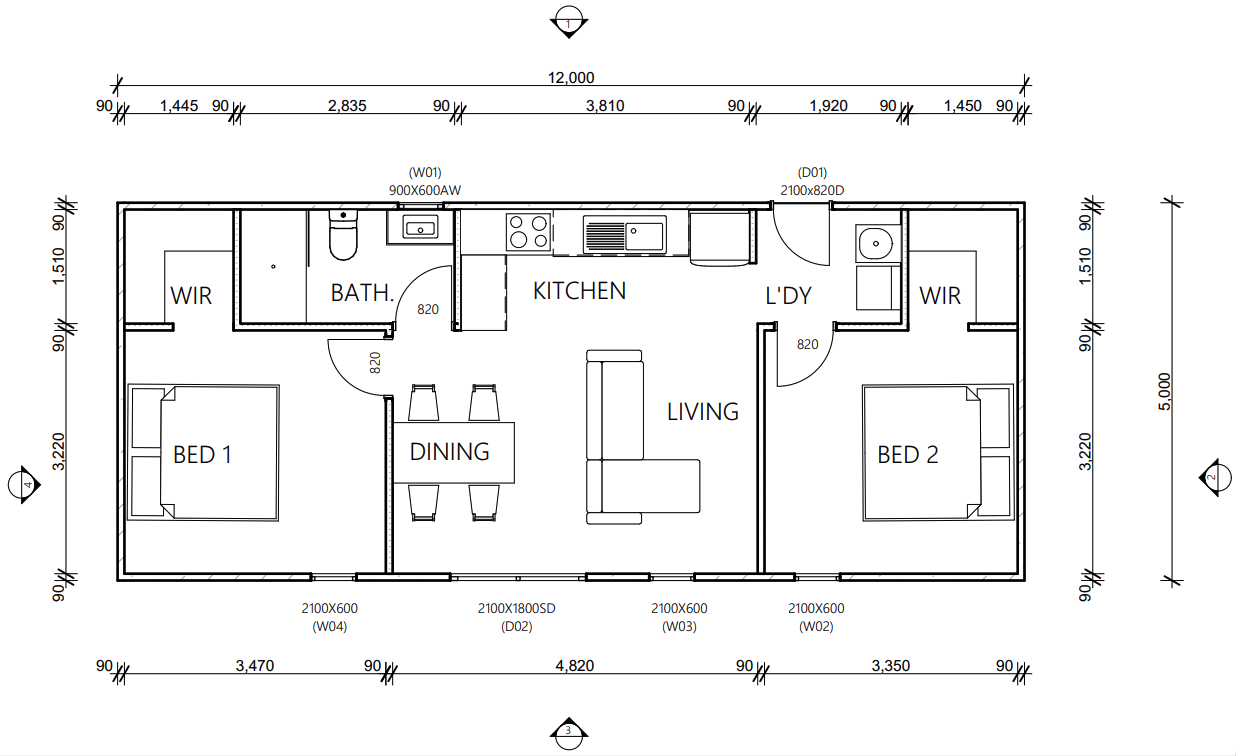

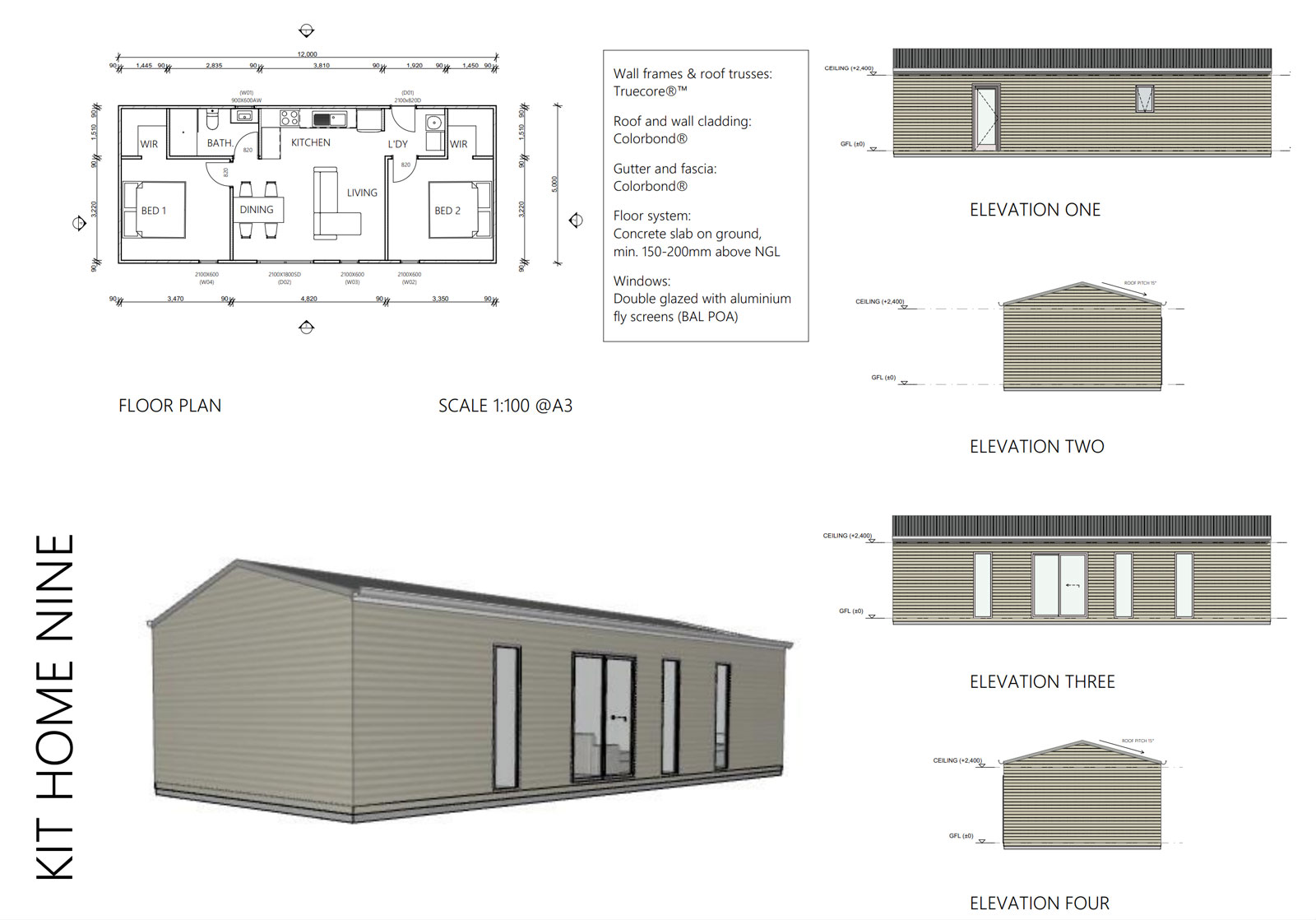

Kit Home Nine offers a Gable roof atop Corrugated wall cladding, coated in a Woodland Grey Colorbond that beautifully blends with both urban and rural landscapes.
area 60m2
bedroom 2
bathrooms 1
  • All
  • Plans

Choose your wall cladding

Horizontal-Corrugated-smallCorrugated Colorbond Horizontally clad

A traditional kit home profile that requires no painting as you select a colour from one of 22 Colorbond® colours. High tensile and manufactured from 0.42mm BMT COLORBOND® steel, it can be custom cut on site to suit openings and trims. Available in 22 standard colours, and the 5 colours from the Matt range.

download selections here

It is easy to maintain, weather tight and secure, long lasting, lightweight and extremely durable; resisting chipping, flaking and blistering.



james-smallJames Hardie Scyon Axon 133 Smooth

Incorporating the beauty and fine detail of painted vertical joint timber, but without time-consuming board construction or durability hassles, Axon is a range of vertically grooved panels with the detail of vertical joint timber. Featuring a stepped shiplap joint on the long edges for easy installation, it can be gun nailed and cut cleanly with a circular saw using a dust-reducing fibre cement blade. Comes pre-primed and ready to paint.



mac-nailstrip-smallMAC Nailstrip 265 / 38

MAC Nail Strip is an innovative, concealed fix profile with a vast range of design applications for roofing and wall cladding in residential and commercial projects. MAC Nail Strip is installed via screw fastening. Each strip is snapped over the adjoining panel securing it in place and concealing the fixing. Installation is simple and quick with no need for seaming tools. We only supply sizes of 265mm wide pans // 38mm high ribs. Available in 22 standard colours, and the 5 colours from the Matt range.

download selections here




Choose your foundation

concrete-slab-1Concrete slab

Our preferred option, slab on ground provides strength and long lasting solid foundation. Fully engineered for your site conditions and soil type up to Soil Class A, S, M & H only; other POA. Most builders favour using concrete slab foundations because they are relatively easy to install and reduce overall construction time. They are virtually maintenance free and can be designed to suit all soil conditions.



elevated-smallElevated floor system

Supplied as a kit including 89x89x3.5mm galvanised SHS posts with steel top & bottom connectors, bearers, joists, 19mm floor sheeting, R2.0 Optimo floor insulation with clips, all fixings / screws to work (no welding required). These floor systems require a very low amount of maintenance to keep it looking great and performing at its best.




Choose your roofing

roof-profileRoof Profile

Rainbow Kit Homes only options corrugated Colorbond® for the roof, Available in 22 standard colours, and the 5 colours from the Matt range.

download selections here



roof-option-1Roof Option

Rainbow Kit Homes offer two roof planes per design; gable of skillion. Skillion provides a simpler plumbing option for future downpipes, and overall easier to install on site. However a gable compliments nearby buildings.





Download our latest brochure

Learn how to construct your personalised kit home.
